Cylinder Kits - Twin Cam

Stage "1" 107 Big Bore Kit

Suburban Speed 107 big bore kit is a great choice for your twin cam 96-103 engines. What sets our kit apart from our competitors is our custom Mahle Motorsports piston and cam combination. Mahle uses the latest in piston forging technology. These pistons are forged from 4032 alloy instead of 2618 which allows for tighter skirt clearances for quieter operation. Piston skirts are coated with a Grafal anti-friction coating which reduces scuffing and cylinder bore wear. The ring grooves are coated with a phosphate coating which helps lubricate the piston rings, wrist pins and prevents micro welding. Our kit also has the latest in piston ring technology. With a 1.2mm top ring 1.5mm cast iron napier second and 2.8mm oil rings. Piston give you 10.1 to 1 compression ratio with stock heads.
Add up to 40% increase in power.

Kit includes:

  • Mahle 10:1 compression pistons
  • Suburban Speed 581 cams
  • Heavy duty Torrington inner cam bearings
  • Precision bored cylinder (exchange) cylinders (or send us your cylinders)
  • Cometic head gasket
  • All other gaskets necessary to install kit
  • Add $79.95 for mechanical compression releases

Kit price $1199.95
Kit price (NEW CYLINDERS) $1469.90

Harley-Davidson Cylinder Kits

Stage "2" 107 Big Bore Kit

Suburban Speed stage "2" big bore kit is a great choice for your twin cam 96 or 103 engine. This kit uses the same Mahle Motorsports 107 custom piston as our Stage 1 kit but comes with our stage "1" 1.900 ported heads and T-MAN 590 chain drive cams.
Add up to 70% increase in power.

Kit includes

  • 1.900 ported heads.
  • Mahle Motorsports 107 pistons.
  • T-man 590 cams.
  • S&S adjustable pushrods.
  • Upgraded inner cam bearings.
  • Precision bored (exchange) cylinders (or send us your cylinders).
  • Cometic head gaskets.
  • All other necessary gaskets to install kit.
  • Add $79.95 for mechanical compression releases.

Kit price $2049.95
Kit price (NEW CYLINDERS) $2320.90

Harley-Davidson Cylinder Kits

Screamin' Eagle 113 CVO Stage "1" Kit

Suburban Speed 113 big bore kit is a great choice for your 2007 to 2015 Screamin' Eagle 110 CVO twin cam. What sets our kit apatr from our competitors is our custom Mahle Motorsports piston and cam combination. Mahle uses the latest in piston forging technology. These piston are forged from 4032 alloy instesd of 2618 which allows for tighter skirt clearances for quieter operation. Piston skirts are coated with a grafal anti-friction coating which reduces scuffing and cylinder bore wear. The ringlands are coated with a phosphate coating which helps lubricate the piston rings and wrist ring technology. With a .043mm top ring, .043mm cast napier second and 3.0mm oil rings. Pistons give you 9.8 to 1 compression ratio with stock heads.

Kit includes

  • Mahle 9.8 compression pistons.
  • Mahle .043 - .043 - 3.0mm oil rings.
  • Stronger & lighter 9310 wrist pin.
  • Suburban speed 581 cams.
  • Heavy duty Torrington inner cam bearings.
  • Precision bored cylinder (exchange) cylinders.
  • All other gaskets necessary to install kit.

Kit price $1050.95


Screamin' Eagle 117 CVO Stage "2" Kit

Suburban Speed 117 big bore stage "2" kit is a great choice for your 2007 to 2015 Screamin' Eagle 110 CVO twin cam. What sets our kit apart from our competitors is our custom Mahle Motorsports piston and cam combination. Mahle uses the latest in piston forging technology. These piston are forged from 4032 alloy instesd of 2618 which allows for tighter skirt clearances for quieter operation. Piston skirts are coated with a grafal anti-friction coating which reduces scuffing and cylinder bore wear. The ringlands are coated with a phosphate coating which helps lubricate the piston rings and wrist ring technology. With a .043mm top ring, .043mm cast napier second and 3.0mm oil rings. Pistons give you 10.7 to 1 compression ratio with stock heads.
Up to 55% increase in power

Kit includes

  • Stage 1 ported heads with 2.120 intake valve.
  • Mahle 4.125  bore 10.7 compression pistons.
  • SE 117 big bore cylinders
  • Mahle .043 - .043 - 3.0mm oil rings.
  • Stronger & lighter 9310 wrist pin.
  • T-Man 590C cams.
  • Adjustable pushrods.
  • Heavy duty Torrington inner cam bearings.
  • Precision bored cylinder exchange cylinders.
  • Cometic .040 head gaskets.
  • All other gaskets necessary to install kit.
  • SE 58mm Throttle body & 5.3 injectors.

Kit price $3399.95

Harley-Davidson Cylinder Kits

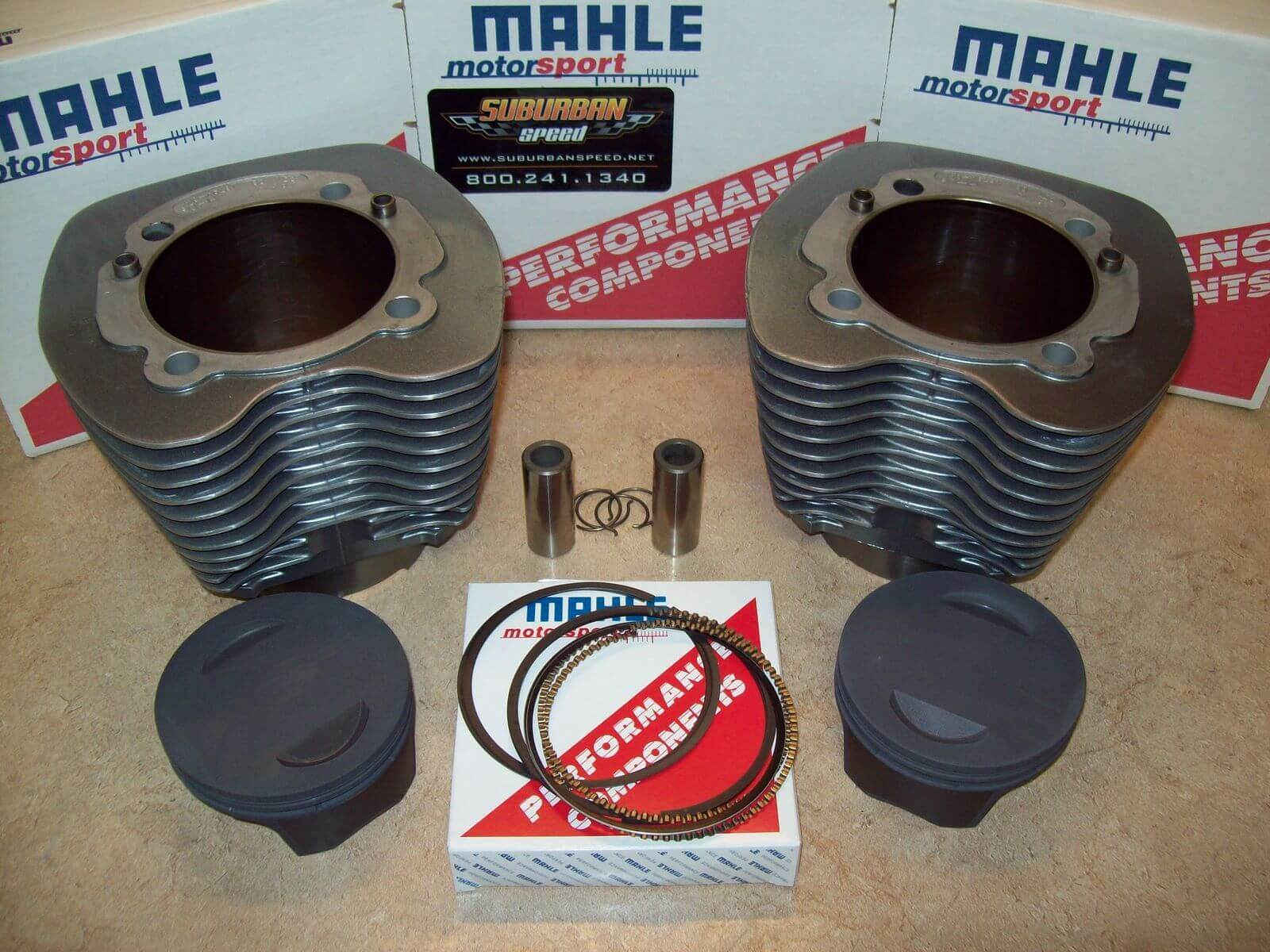

New! Suburban Speed 107 Piston & Cylinder Kit

New from Suburban Speed 107 flat top piston & cylinder kits. These kits come with our Mahle 4032 forged pistons, steel nitrided top rings, napier cast second rings, 3mm low tension oil rings, high strength light weight nitrided chrome moly wrist pin, Cometic .045 head gaskets and new cast iron lined cylinders.

107 Flat top piston & cylinder kit (NEW) $957.32
107 Flat top piston cylinder kit (EXCHANGE) $627.90

Harley-Davidson Cylinder Kits

New! Suburban Speed 107 High Compression Piston & Cylinder Kit

New from Suburban Speed 107 high compression 4cc piston & cylinder kit. These kits come with our Mahle 4032 forged 10.5 to 1 pistons, steel nitrided top rings, napier second rings, 3mm low tension oil rings and high strength light weight nitrided chrome moly wrist pins.

107 High compression piston & cylinder kit (NEW) $957.83
107 High compression cylinder & piston kit (EXCHANGE) $668.75

Harley-Davidson Cylinder Kits

New! Suburban Speed 113 Piston & Cylinder Kit

New from Suburban Speed 113 high compression 9cc piston & cylinder kit. Turn your Screamin' Eagle 110 into a 113 without boring the cases. We worked with Mahle Motorsports and came up with a reliable piston and cylinder combination using your stock 110 cylinders. Pistons have a 9cc dome to give you 10.5 to 1 compression ratio and come with coated skirts, ring groves and pin bores. Kit also comes with 4.060 cometic head gaskets.

113 High compression piston & cylinder kit (NEW GRANITE) $894.74
113 High compression piston & cylinder kit (NEW BLACK) $1008.79
113 High compression piston & cylinder kit (GRANITE EXCHANGE) $666.84

Harley-Davidson Cylinder Kits

New! Suburban Speed 117 Piston & Cylinder Kit

New from Suburban Speed 117 high compression -2cc flat top piston & cylinder kit. We worked with Mahle Motorsports and came up with a reliable piston and cylinder combination. Pistons have a -2cc dome to give you 10.9 to 1 compression ratio with a 85cc combustion chamber. Pistons come with coated skirts, ring groves and pin bores. Kit also comes with 4.125 cometic head gaskets. (Case boring required).

117 Flat top piston & cylinder kit (new) $1158.56

Harley-Davidson Cylinder Kits

New! 117 Piston & Cylinder Kit Suburban Speed 117 Piston & Cylinder Kit

New from Suburban Speed 117 high compression 6.6cc piston & cylinder kit. Turn your Screamin' Eagle 110 into a 117 without boring the cases. We worked with Mahle Motorsports and came up with a reliable piston and cylinder combination using the new Screamin' Eagle cylinders. Pistons have a 6.6cc dome to give you 10.7 to 1 compression ratio with a .040 head gasket, and come with coated skirts, ring groves and pin bores. Kit also comes with 4.125 cometic head gaskets.

117 Black high compresssion piston & cylinder kit $1332.54
117 Granite high compression piston & cylinder kit $1332.54

Harley-Davidson Cylinder Kits

Twin Cam Cylinder Kit Information

Parts Request

Engine >> Lifters >> Hydraulic Tappet Assembly
S&S

Hydraulic Tappet Assembly

Price$146.95
Shipping* (see more options)$35.00
*Listed
shipping rates are calculated on this item alone, which may not apply
if you have additional items in your cart. You may change your shipping
preferences at any time by proceeding to your shopping cart.
Total (Tax not included)$181.95

Product Specs:
Part #: 330-0288
Aliases:
  • 0929-0055

FITMENT:
Harley-Davidson® , FLHR Road King , 1995 ||| Harley-Davidson® , FLHR
Road King , 1996 ||| Harley-Davidson® , FLHR Road King , 1997 |||
Harley-Davidson® , FLHR Road King , 1998 ||| Harley-Davidson® , FLHRC
Road Kin
